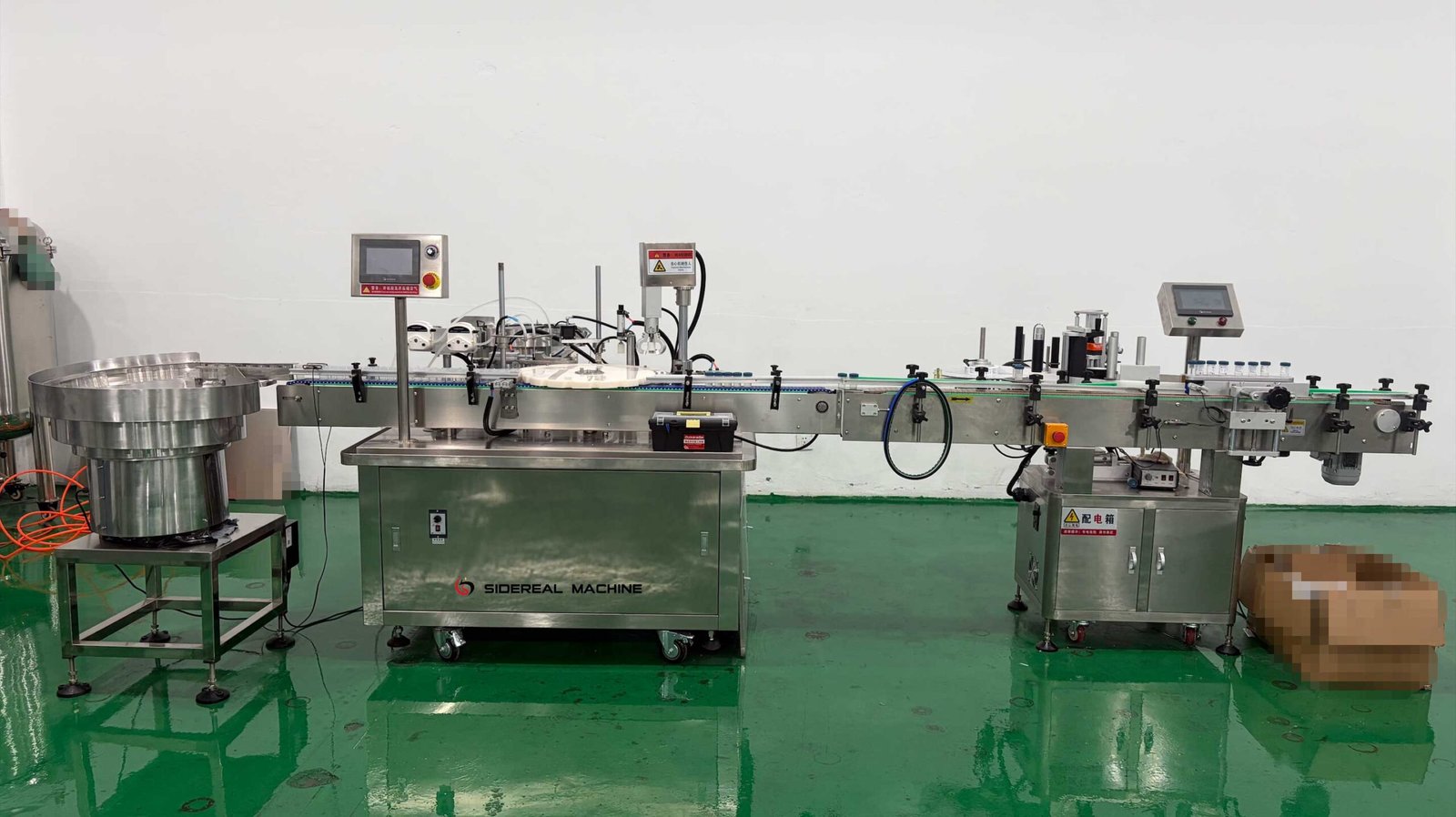

Cell preservation solution filling capping machine production line
Applicable bottle: 20ml-50ml, can be customized as per client’s requirements.
Production capacity: 50-70 bottles/ min, 80-100 bottles/min, can be customized as per client’s requirements.
Filling precision: ≥98%
Voltage: 220V 50Hz
Power: 2KW
Air consumption: 0.8-2m³/h 0.3-0.8Mpa
Weight: 500KG
Dimensions: Filling machine-2000*1250*1700mm, others parts optional.
Description

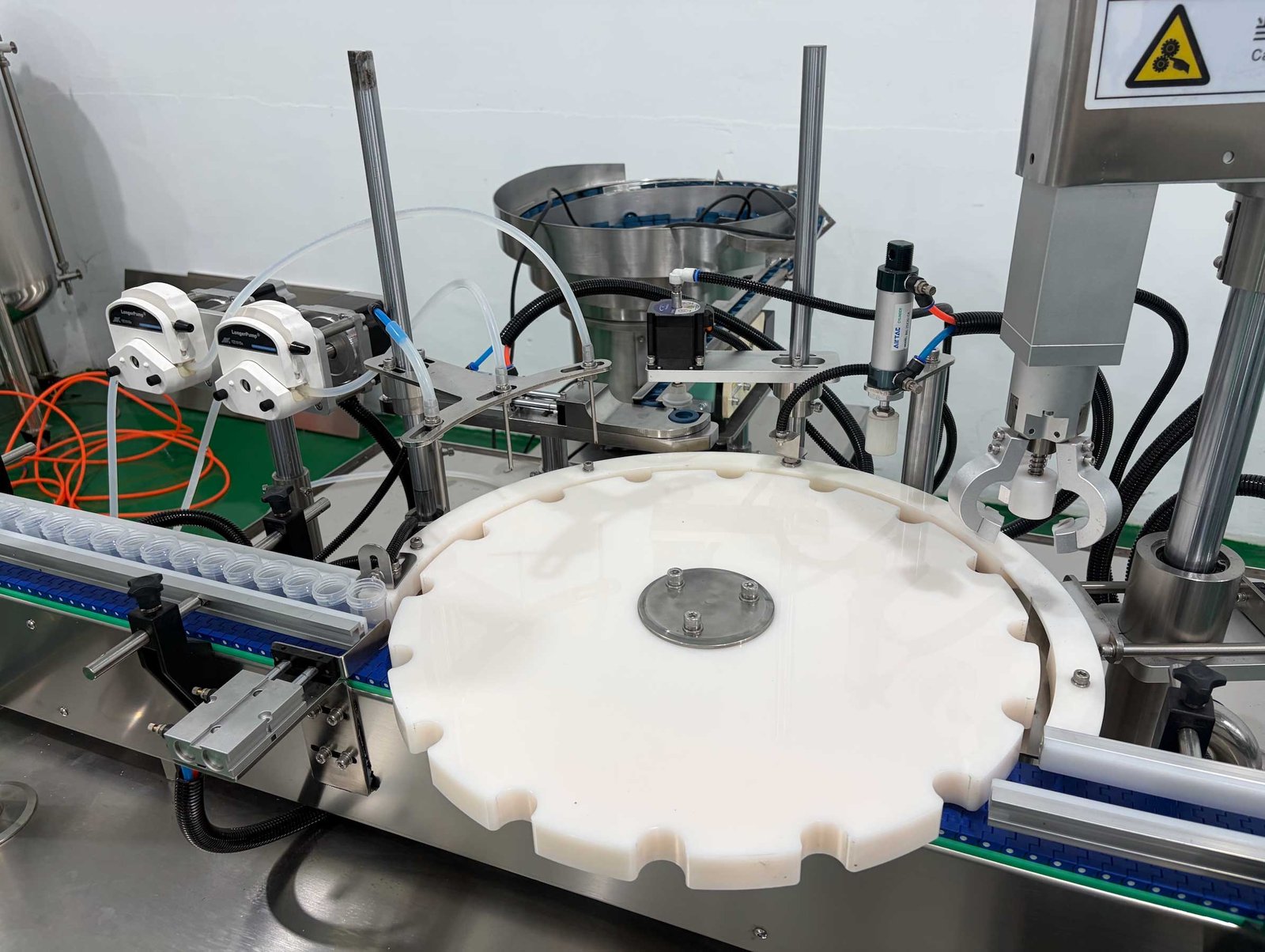

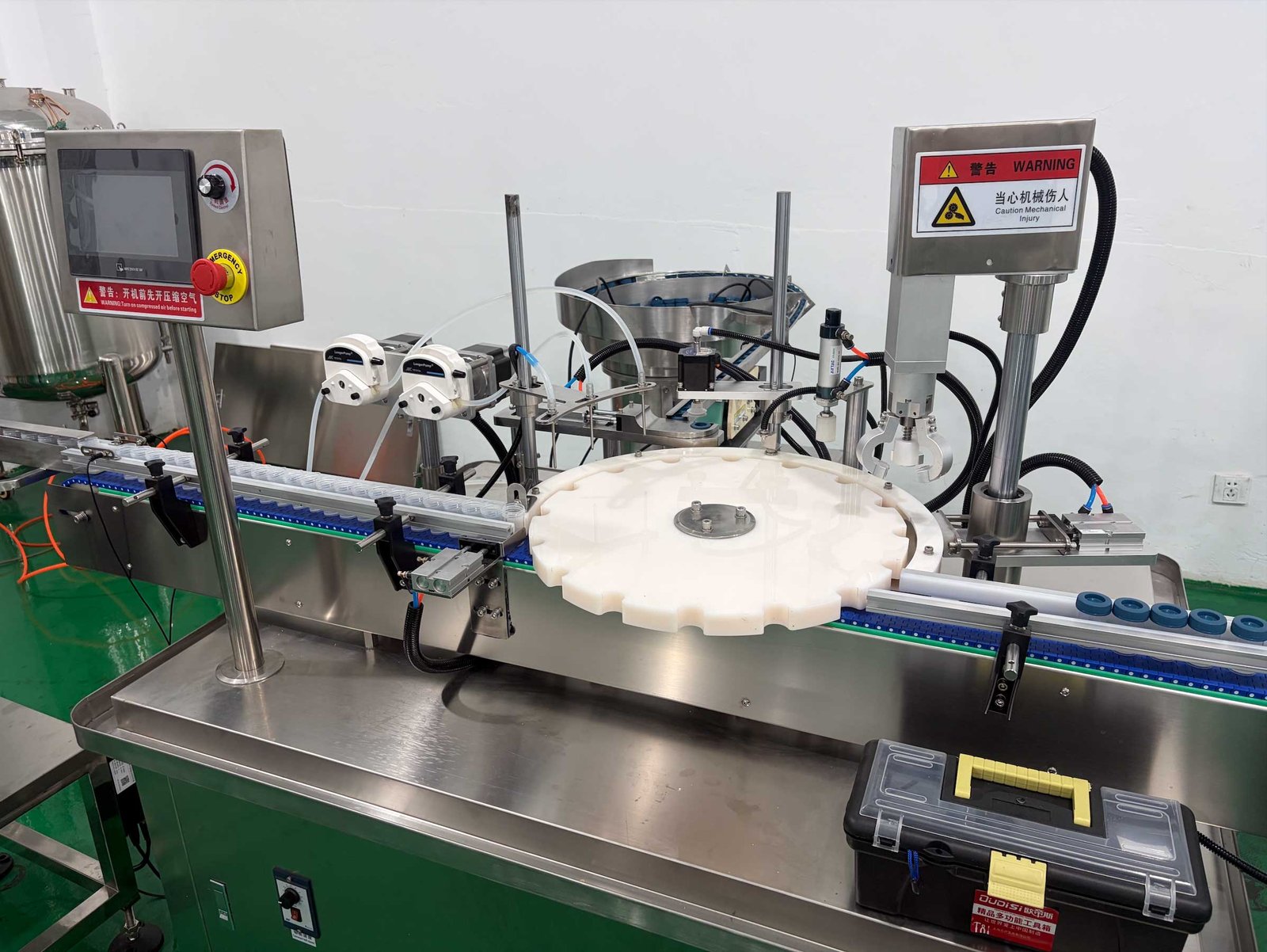

The Cell Preservation Solution Filling Capping Machine Production Line is a specialized automated packaging system designed for the precise filling and sealing of cell preservation solutions, biological reagents, laboratory solutions, and other sensitive liquid products. The production line integrates automatic bottle feeding, liquid filling, capping, and optional labeling and coding processes, providing a complete solution for pharmaceutical, biotechnology, medical, and laboratory product manufacturers.
Features:

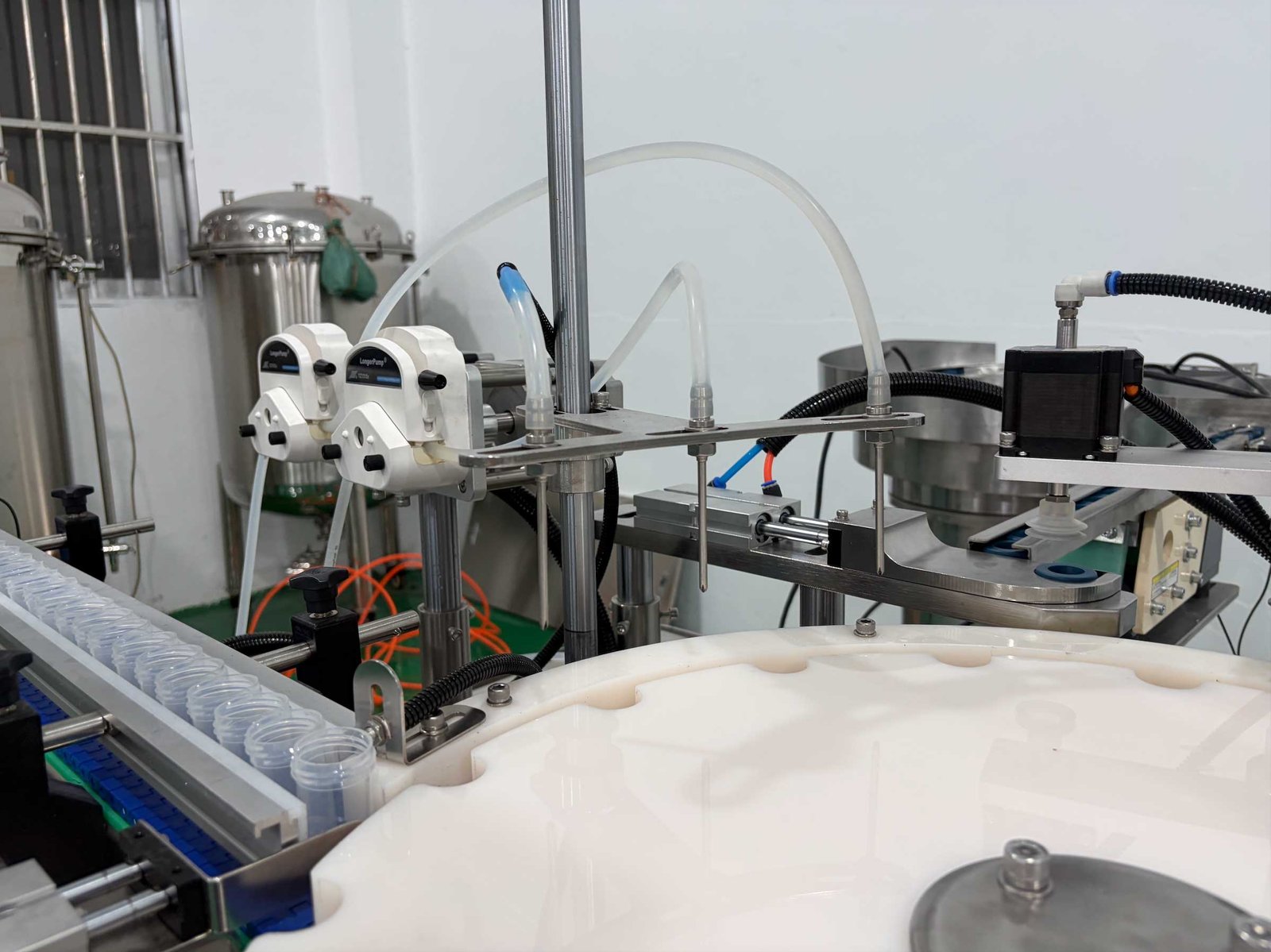

1. Easy Operation and Maintenance, high precision filling system, servo motor PLC touchscreen control system, multi-language user-friendly operation interface.
2. Automatic fault detection and alarm system, quick adjustment for different bottle sizes, reduced downtime and maintenance costs
3. The machine is made of SUS304 stainless steel, product contact parts are made of 316L stainless steel, GMP compliant.

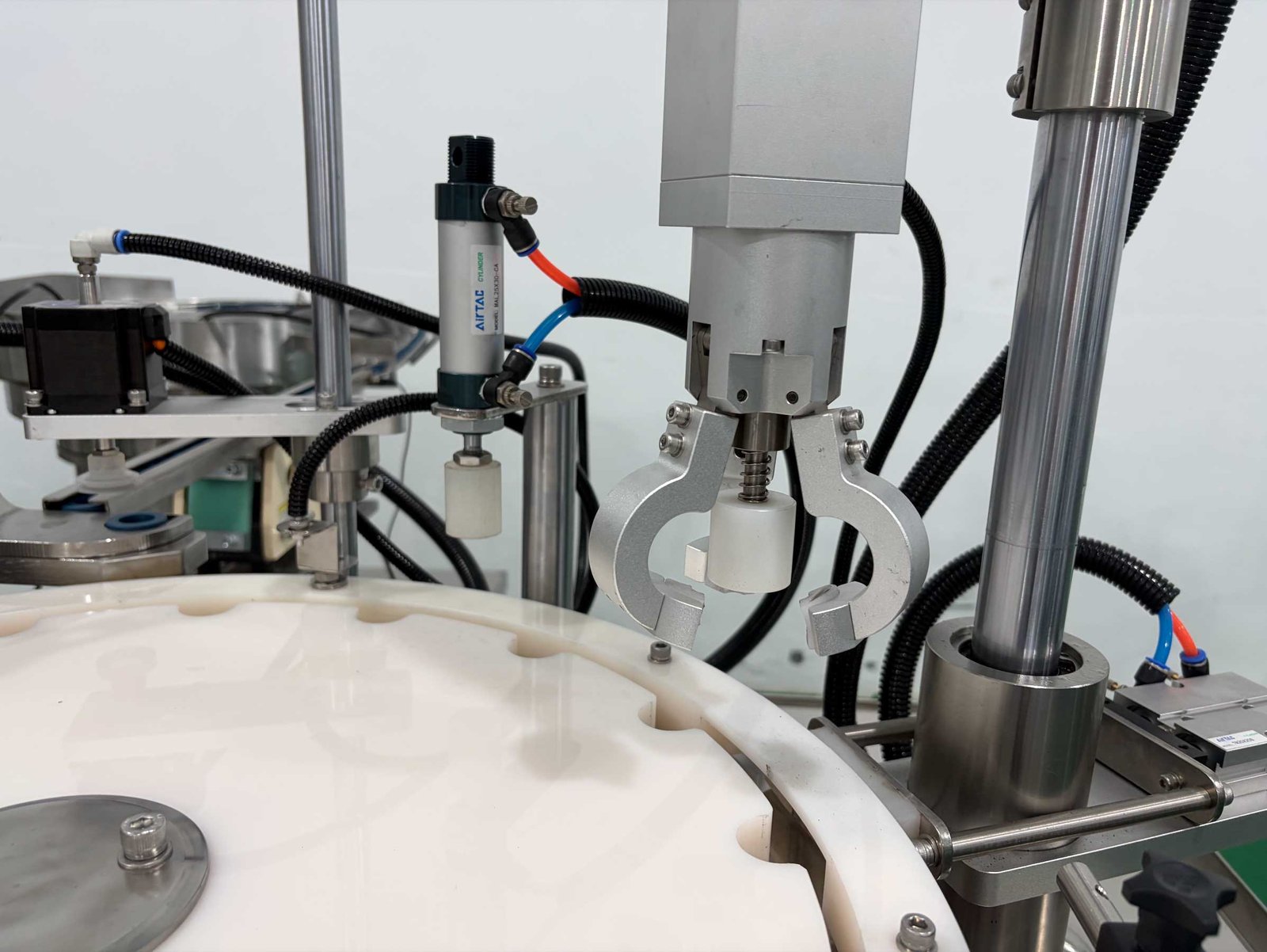

4. The automatic capping system provides consistent torque control, ensuring reliable sealing performance and preventing leakage during transportation and storage.
5. The equipment can be customized according to different bottle sizes, filling volumes, filling speed, production capacities, and customer-specific requirements.
6. Smooth surface treatment prevents liquid residue accumulation, easy cleaning and maintenance design. Suitable for pharmaceutical and biotechnology production environments.

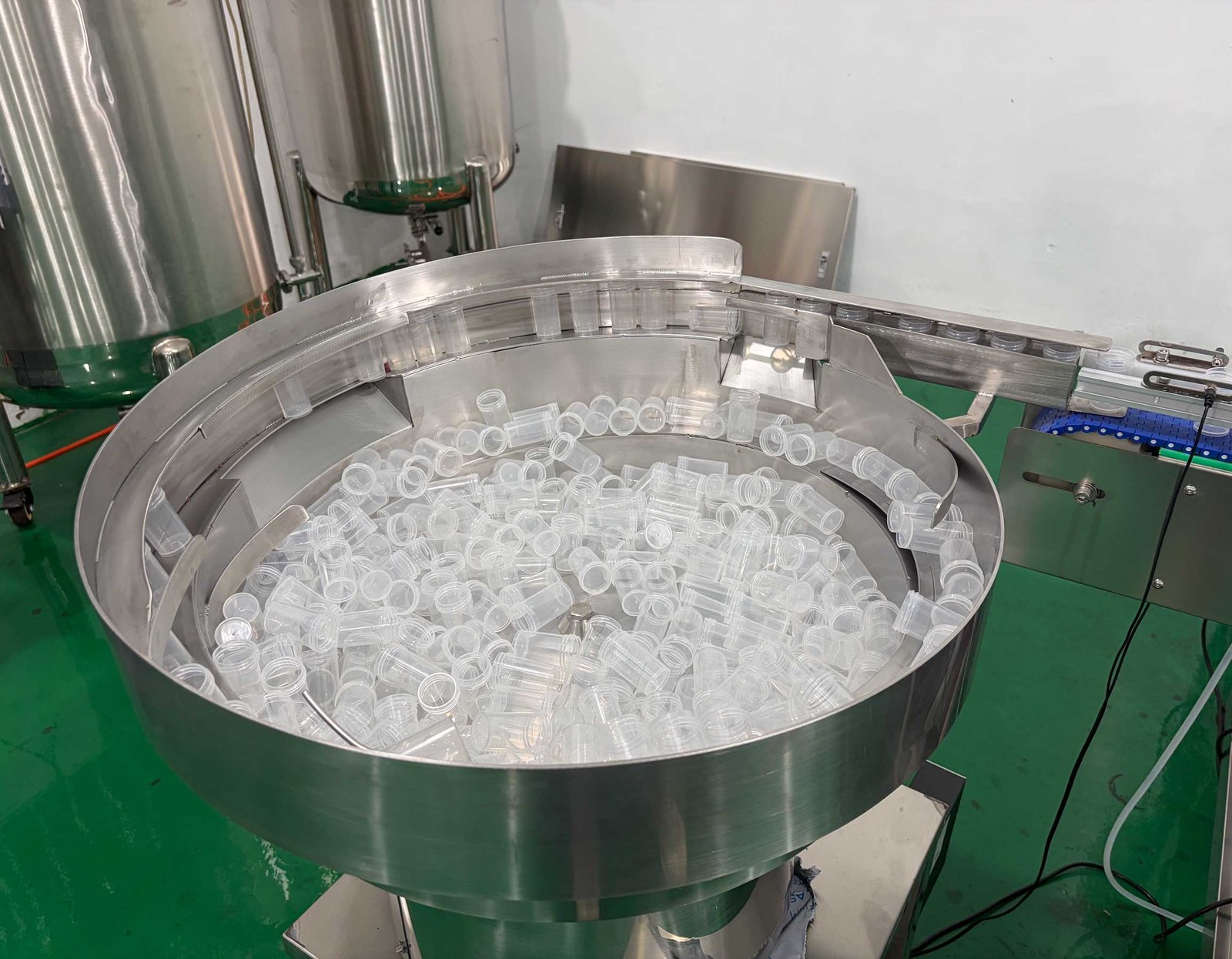

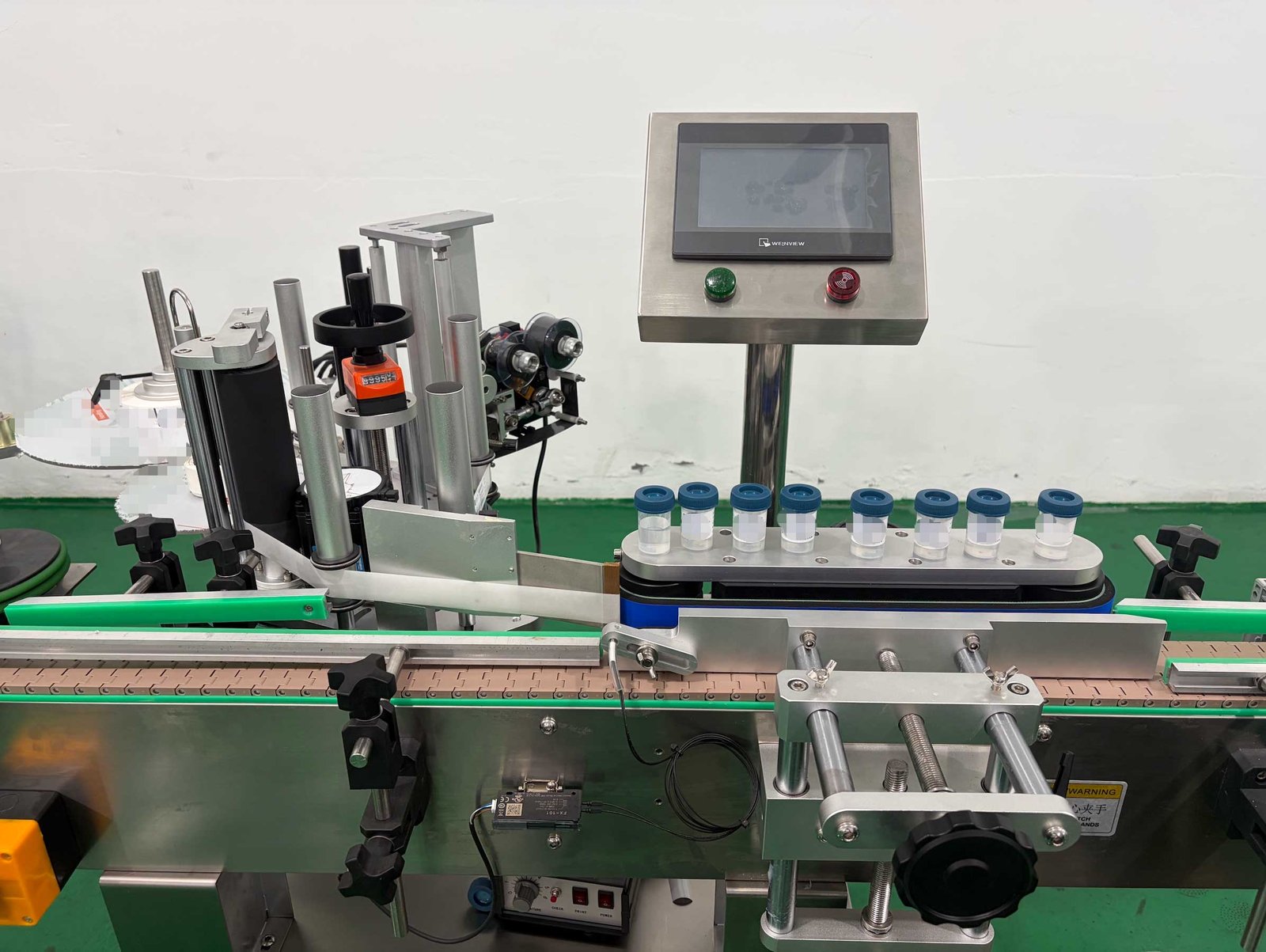

7. The production line integrates multiple functions including: Automatic bottle unscrambling, bottle feeding, precision liquid filling, automatic capping, labeling, batch expire date coding (optional)
Application:
The Cell Preservation Solution Filling Capping Machine Production Line is widely used in: cell preservation solution, cell culture medium, biological reagents, research laboratory solutions, medical solutions, diagnostic reagents, liquid pharmaceutical products, sample preservation liquids, testing solutions, scientific research products, ect.
Other matched equipments for filling lines: bottle feeder, bottle unscrambler, bottle washing, labeling, capping, foil sealing, counting, expire date printing, bottle boxing, sterilizing dryer, etc.
