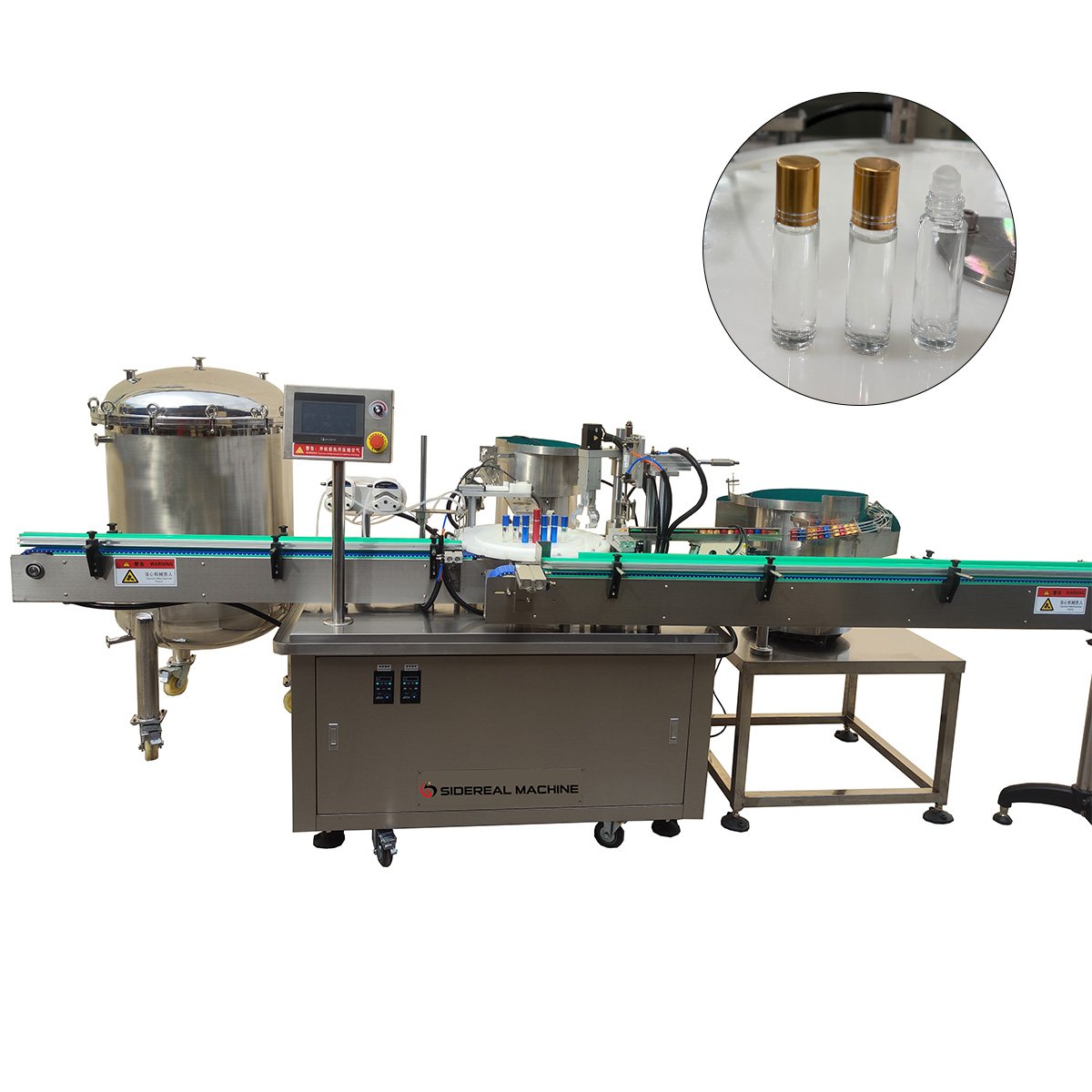

Roll-on bottle automatic filling droppering and capping machine
Applicable bottle: 1-500ml
Production capacity: 30-50 bottles/min, 60-80 bottles/min, can be adjusted as per client’s requirements.
Voltage: 220V/50Hz
Power: 2KW
Air consumption: 0.8-2m³/h 0.3-0.8Mpa
Weight: 520KG
Dimensions: 2000*1000*1600mm
Description

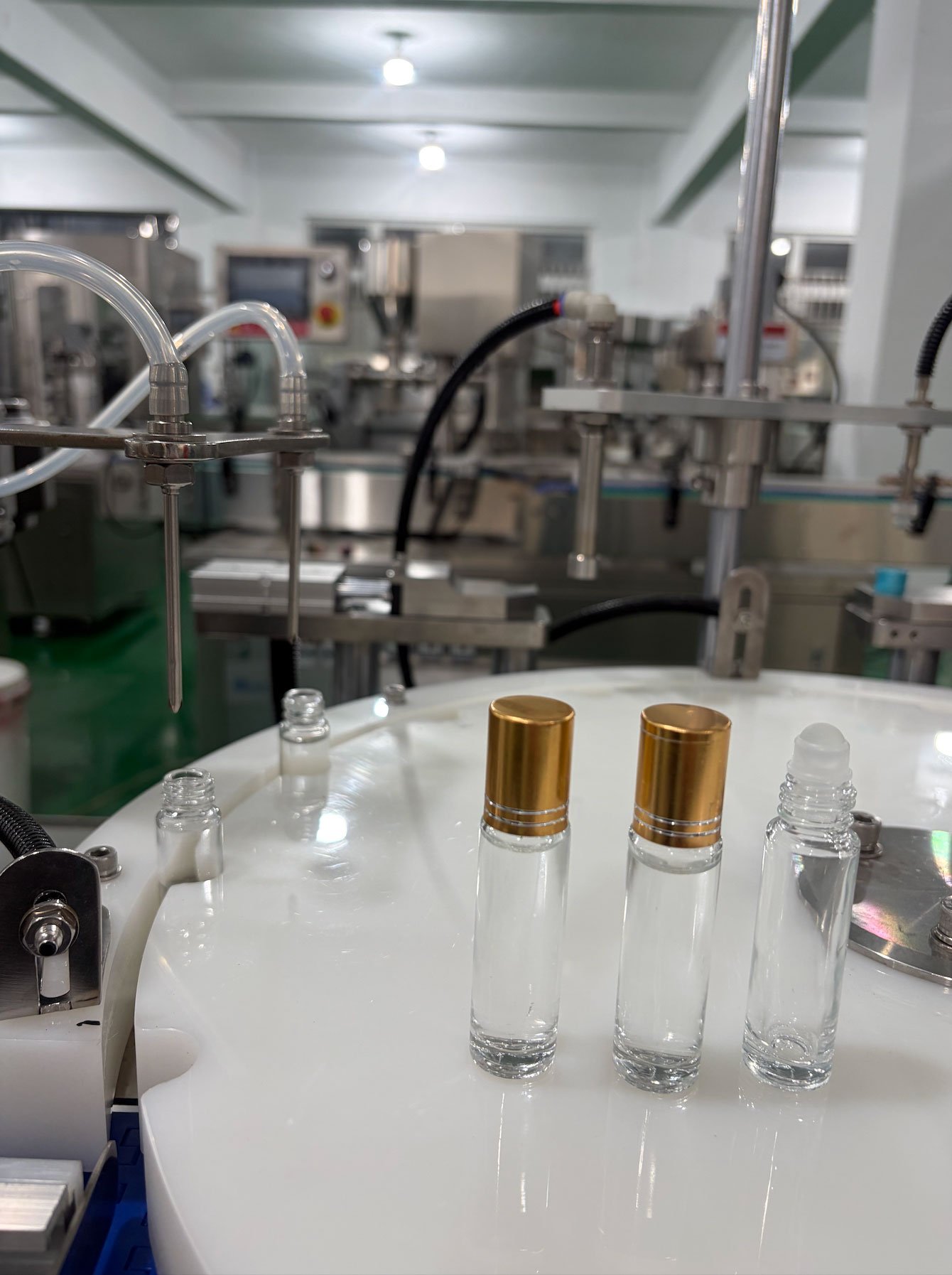

The Automatic Roll On Bottle Filling Machine is a professional automatic filling solution specially designed for liquid products packed in roll-on bottles. It is widely used for filling and assembling products such as perfume oils, essential oils, aromatherapy oils, cosmetic serums, and other personal care liquids.

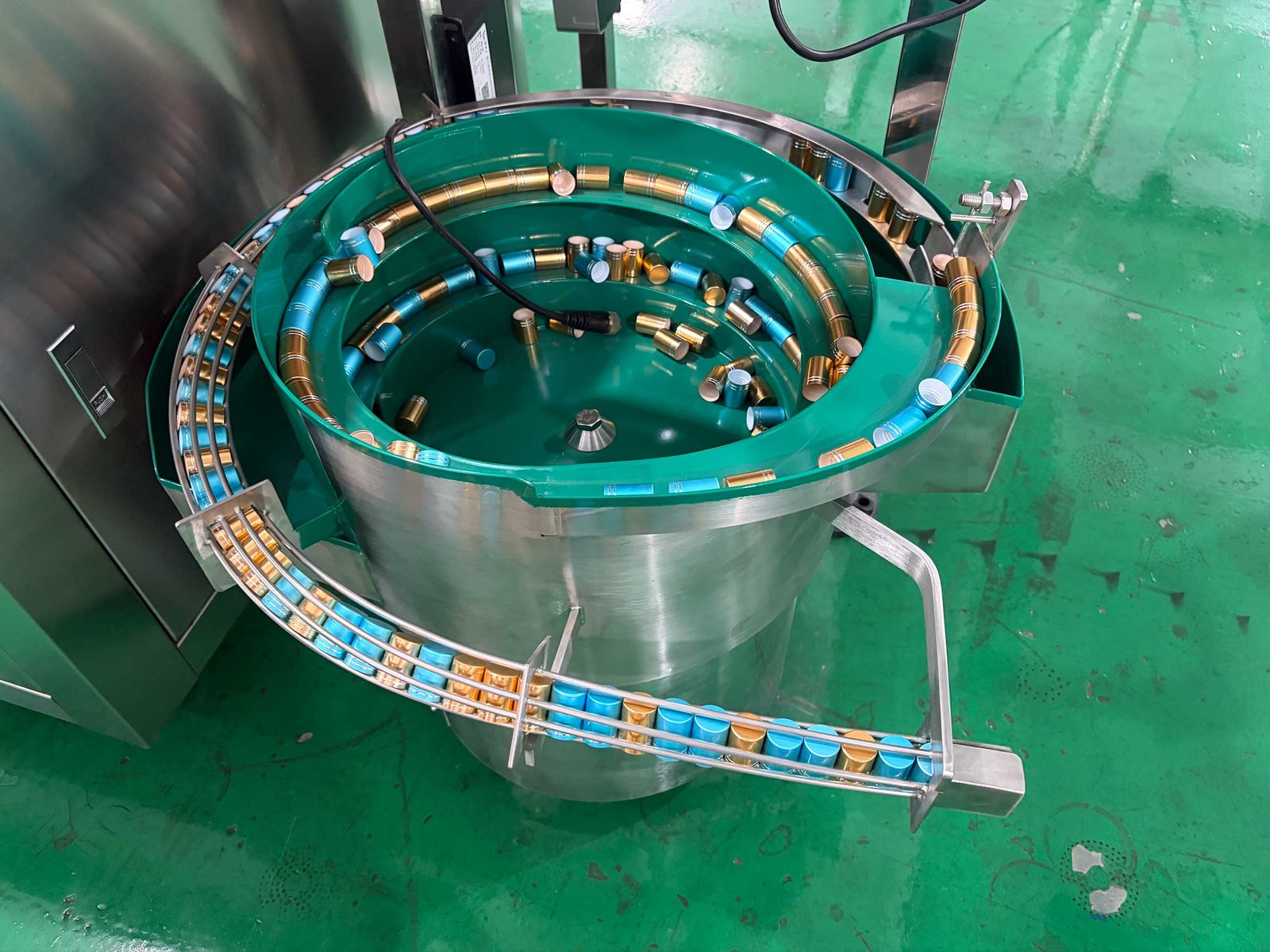

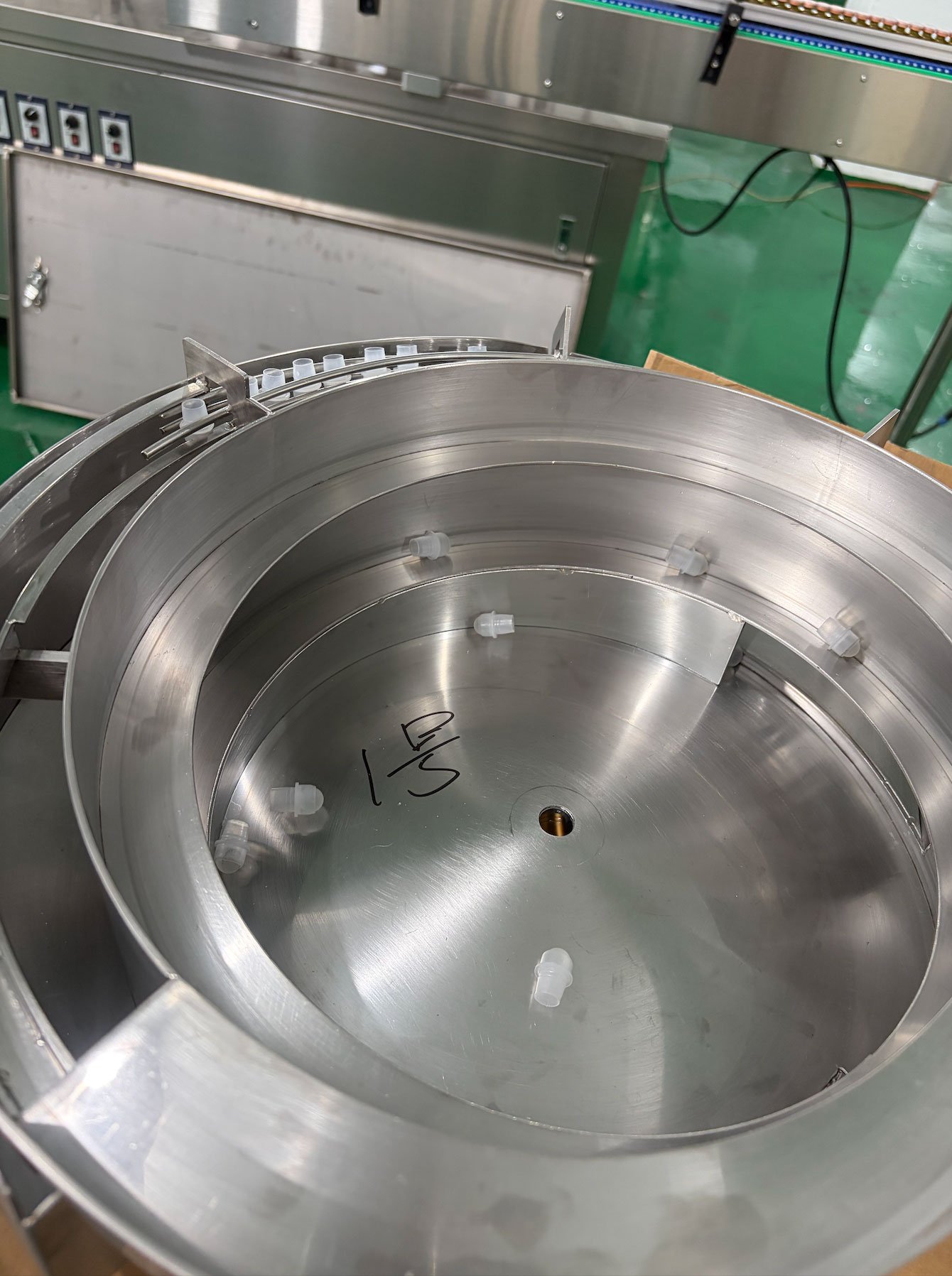

The machine integrates multiple functions, including: Bottle feeding， liquid filling, ball insertion, cap pressing, capping, etc. It can also integrate with labeling machine according to customer demand. The machine can be designed as a standalone filling unit or integrated into a complete automatic production line.
Features:

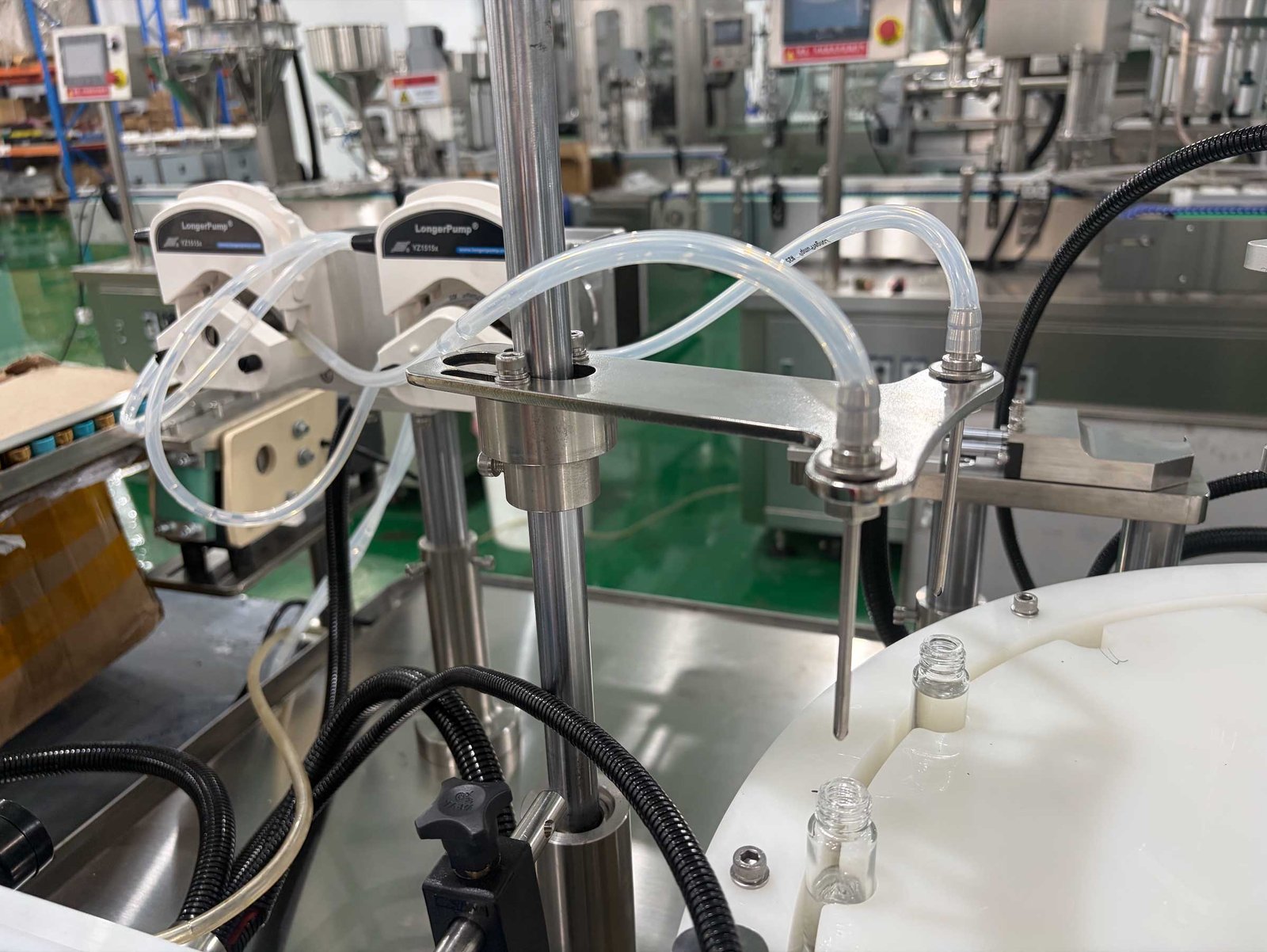

1. The Automatic Roll On Filling Machine adopts an advanced servo motor peristalic pump high prcision filling system to ensure accurate liquid dosing for different products. It is suitable for various low-viscosity liquids like perfume oil, essential oil, cosmetic serum, aromatherapy liquid, skincare products,etc. The filling volume can be customized according to bottle capacity and production requirements.

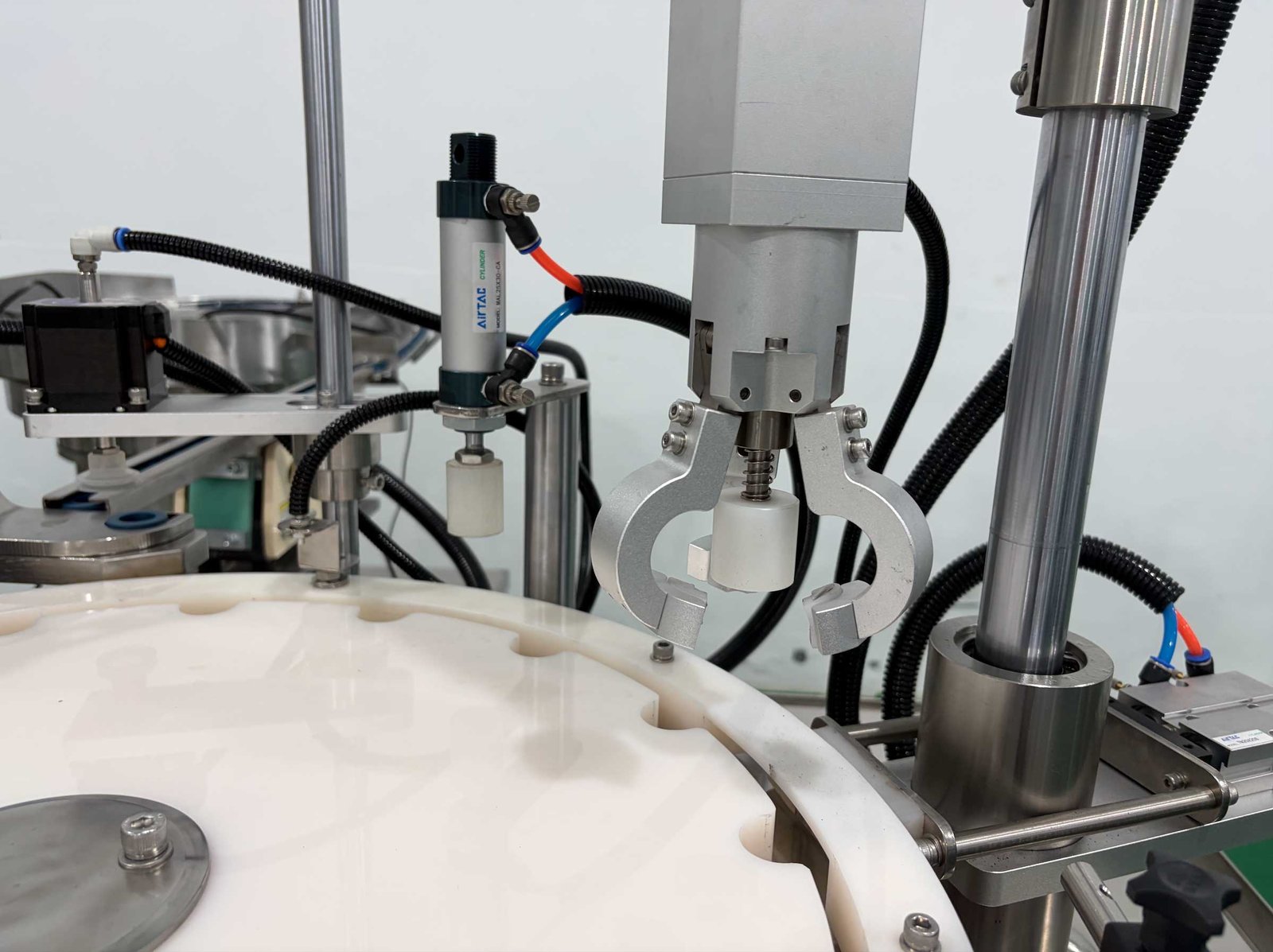

2. The roll-on bottle packaging process requires precise installation of the roller ball and cap. The machine automatically completes ball feeding, ball positioning, ball pressing, outer cap closing. This eliminates manual operation and ensures consistent assembly quality. PLC control system and touch screen interface allow operators to easily set filling volume, production speed, machine parameters and peration status.
4. The machine can be customized to handle different roll-on bottle sizes and designs, include glass roll-on bottles, plastic roll-on bottles, aluminum bottles, cosmetic sample bottles in 3ml 5ml 10ml 15ml 20ml 30ml.etc. The machine can be adjusted according to the filling speed, package bottle diameter, height, and ball size,etc.
5. Hygienic Structure and Premium Materials
The machine uses high-quality stainless steel components. it is corrosion resistance, easy cleaning, long service life, compliance with production hygiene standards. Product-contact parts can be customized with 316L stainless steel according to customer requirements.
6. The machine has stable producton performance, it provides stable operation, reduced labor dependency, improved production efficiency, onsistent product quality, suitable for both small-batch production and large-scale manufacturing.
Applications:
1. Perfume and Fragrance Industry: Roll-on perfume, fragrance oil, perfume oil, portable perfume products.
2. Essential Oil Industry: Essential oil blends, aromatherapy oils, natural oil products, wellness products.
3. Cosmetic and Personal Care Industry: Facial serum, skincare oils, eye care products, beauty treatment liquids.
4. Pharmaceutical and Healthcare Products: Herbal oils, medical roll-on products, healthcare liquid products.
Other matched equipments for perfume spray bottle filling machine: bottle feeder, bottle unscrambler, bottle washing, filling, capping, labeling, expire date printing, foil sealing, counting, bottle boxing, sterilizing dryer, etc.
